Produktinformation

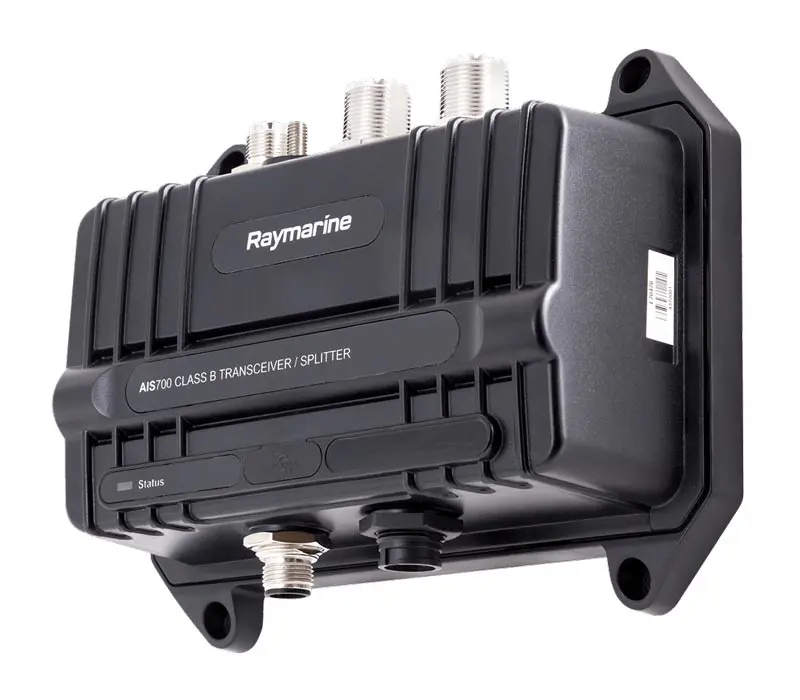

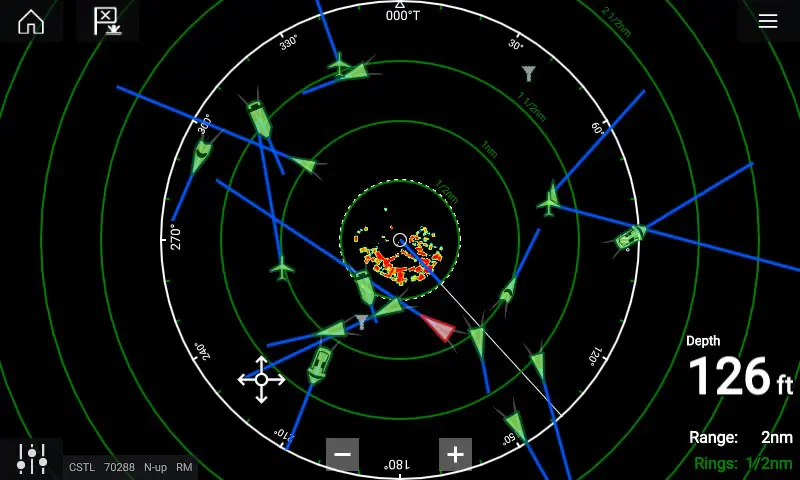

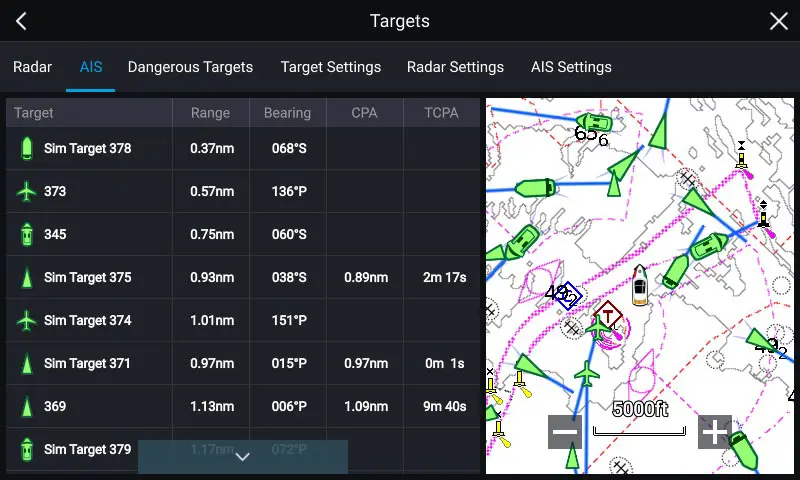

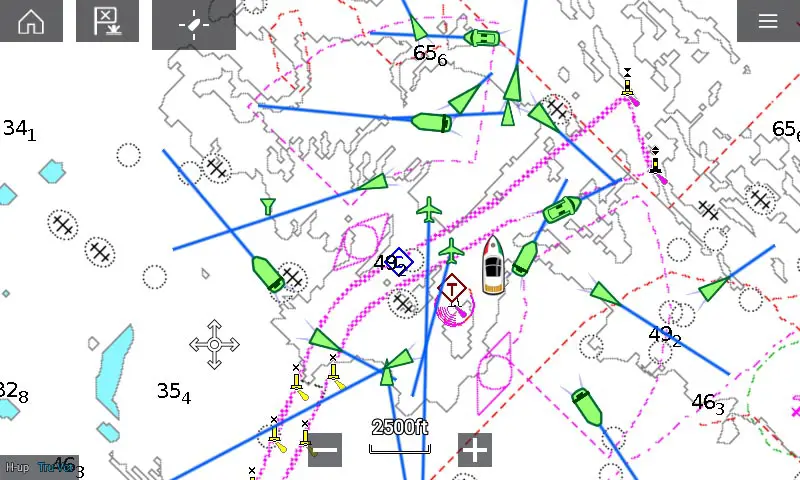

Raymarine AIS 700. Sänder och tar emot AIS-data. Silentmode kan aktiveras antingen genom plotter eller direkt på AISen. Enheten har även en inbyggd splitter vilket gör att du kan använda samma VHF-antenn till både VHF och AIS. Enheten är utrustad med NMEA2000-kontakt och NMEA0183-kablage. Levereras inklusive GPS-antenn.

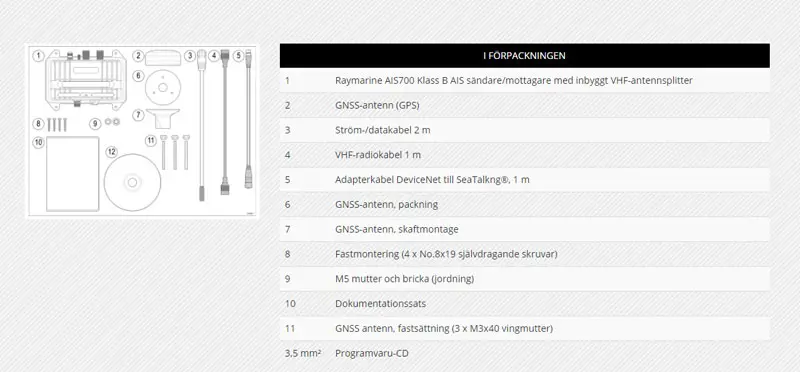

Med i förpackningen
Raymarine AIS700 Klass B AIS sändare/mottagare med inbyggd splitter
GNSS-antenn (GPS) 10m kabel
Ström-/datakabel, längd 2m
VHF-radiokabel, längd 1m
Adapterkabel DeviceNet till SeaTalkng, längd 1m
GNSS-antenn, packning
GNSS-antenn, skaftmontage
Självdragande skruvar, antal 4st
Mutter och bricka M5 (jordning)
Dokumentation
GNSS-antenn, vingmutter M3, antal 3st
Programvaru-CD
Specifikationer
Operating temperature -15°C to +55°C
Storage temperature -20°C to +75°C
Water ingress IPX6 and IPX7
Humidity Up to 93% @ 40°C
POWER SPECIFICATIONS
Power Supply 12v and 24 nominal
Power Consumption <3W
Peak current 3A
Load Equivalency Number 1 LEN
RF SPECIFICATIONS
DSC Receiver Implemented by time sharing with one TDMA receiver
Receiver 1 band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Receiver 2 band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter specification To meet IEC 62287-2 relevant sections
Receiver specification To meet IEC 62287-2 relevant sections
Transceiver specification To meet IEC 62287-2 relevant sections
GPS receiver u-blox MAX-M8W
GPS receiver channels 72 channels
GPS Cold start acquisition time 26s nominal
ANTENNA SPLITTER SPECIFICATIONS
Operating frequency range 156.0MHz to 162.025MHz Transmitting 156.0MHz to 174.0Mhz Receiving
Insertion loss AIS RX path 0dB
Insertion loss AIS TX path <1dB
Insertion loss VHF RX path 0dB
Insertion loss VHF TX path <1dB
Power handling AIS port Maximum 5W input
Power handling VHF port 25W input
Switching time RX to VHF TX 10uS Max
Switching time RX to AIS TX 10uS Max
Switching time VHF TX to AIS TX 10uS Max
Switching time any TX to RX 10uS Max
VHF port impedance 50 Ohms
AIS port impedance 50 Ohms
Antenna port impedance 50 Ohms
VHF to AIS port isolation >28dB (both directions)
Minimum VHF input power for switching 400mW
EXTERNAL CONNECTIONS
VHF antenna connector type SO-239 co-axial
VHF radio connector type SO-239 co-axial
GNSS antenna connector 50Ω TNC co-axial
NMEA2000 DeviceNet male
USB Micro-B
External interface isolation NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification.
NMEA0183 interface 1 (MFD connection) NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.
NMEA0183 interface 2 (NMEA0183 instrument connection) NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate
USB interface (PC connection) Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud
